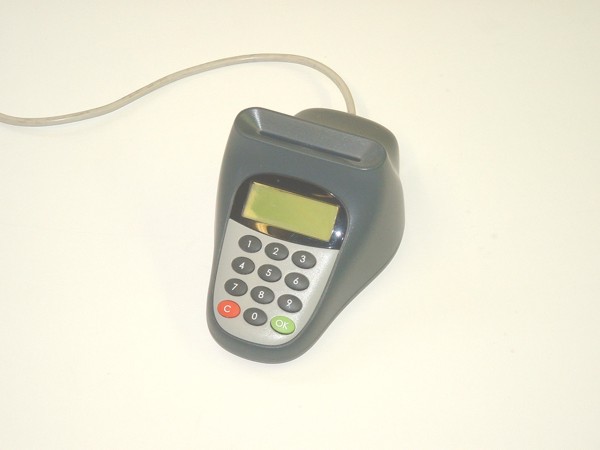

POST The Point of Sale Terminal (POST) is a counter-top mounted smart card terminal which provides easy solutions for all PoS requirements. It includes a dual sided card acceptor for speed of use.

(click for larger image)

• Multiple e-purse support
• ISO 7816 - 1/2/3 compatible smart card interface
• Supports CPU-based cards with T=0 or T=1
• 100 x 32 pixel full graphics LCD display
• 12 key rubber keyboard
• Flash upgradeable
• Real-time clock
• Operates in stand-alone mode or as slave reader to till

Hardware Specification

• 8-bit single chip microcontroller
• 128k bytes flash memory for applications
• 32k bytes RAM
• 100 x 32 pixel full graphics LCD display with electronic contrast adjustment.
• On-board Real Time Clock
• A secure memory management system
• Flash upgradeable with a secure download
• 3 x 4 soft rubber keypad rated at > 1 million presses per key

Card Interface

• Full ISO7816-1/2 compatible
• 1 - ID1 size cards
• ISO7816 - T=0 / T=1
• 100,000 insertion cycles wipe contacts
• Double contact to allow either orientation customer card insertion
• 4 - internal ID000 size cards.
• ISO7816 - T=0 / T=1
• 10,000 insertion cycles soft landing contacts
• Card clocking upto 8MHz

Host Interface

• Programmable RS232C serial port up to 19200baud (full duplex)
• Proprietary host protocols developed

General Specifications

• Durable plastic casing design for counter top use
• Case can secured to the counter through the case of the device
• Dimensions: 165 x 112 x 78 mm
• Colour: light grey
• Weight: 280g
• Operating Environment: 0 to +50C ambient, up to 95% relative humidity (non-condensing)
• Transit and Storage: -10 to +60C ambient, up to 95% relative humidity (non-condensing)
