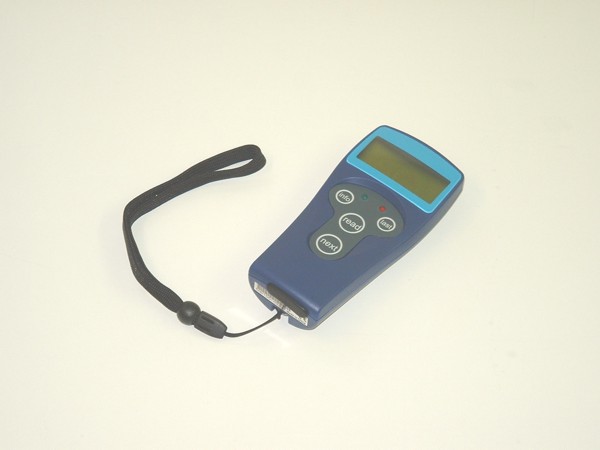

Handy H340 Portable Contactless Reader

This card reader is intended for portable use with any ISO-14443 card or ISO-14443 compatible tag system which require an SAM for key storage.

The unit is housed in a lightweight ergonomically designed plastic case and runs off a rechargeable Li+ internal battery. The user interface is programmable and is based on a set of four keys and an LCD display with a graphical user interface.

The unit can be supplied with optional RS232 interconnectivity and the styling is designed for end user customisation. GIS can supply either full customisation and build or a development platform for in-house development.

Download Leaflet

(click for larger image)

Hardware Specification

8-bit single chip microcontroller
8k bytes internal RAM
32k bytes of internal EEprom
256k bytes internal Flash memory
Real Time Clock
100 x 32 DOT matrix graphic LCD (4 lines of 16 characters)
Membrane keyboard with 4 keys
Operates from single Li+ rechargeable cell
Ergonomic and lightweight case design
Red and green LED for simple user interface
Wrist lanyard
IP64 rated

Card Interface

ISO14443-A or ISO14443-B (optional)
Mifare Classic and Mifare Ultralight
Read range 8cm (typ)

SAM Interface

Internal ISO7816-2 ID000 SAM .
ISO7816-T=0/T=1 card interface
Support for 3V and 5V cards
Interface up to 115kbps.

General Information

Weight: 130g
Dimensions: 130 x 63 x 32(max) mm
Operating Environment: 0 to +50C ambient, 10 to 90% relative humidity (non-condensing)
Transit and Storage: -10 to +60C ambient, 5 to 95% relative humidity (non-condensing)
