Valuepad

A hand-held, card-sized smart card reader designed to provide a convenient way of obtaining information from e-purse and other smart cards.

The Value Pad VP7 allows e-purse card carriers to access all the major functions on their card while protecting the card when not in use.

The unique design of the unit allows the user to read account information from the front of the card while the card is inserted.

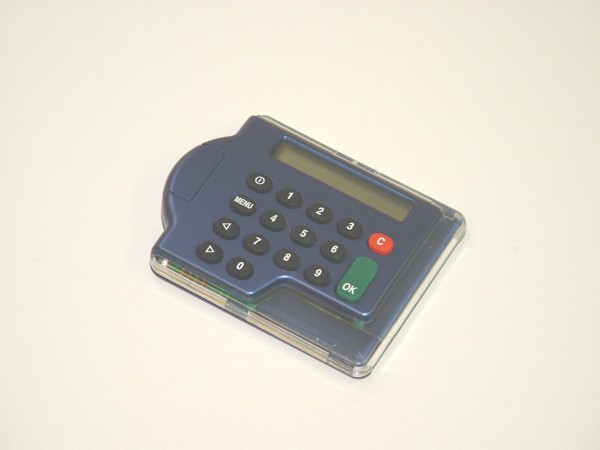

Valuepad

(click for larger image)

  • Read the balance on the card
  • Lock and unlock the card
  • Change, set and verify the personal code or PIN
  • Select and display any of the electronic currencies stored on the card
  • Obtain a statement of the last 10 transactions stored on the card
  • Verify card holder for secure logon using one-time passwords

*(depending on card and application loaded)



Hardware Specification

  • 4-bit single chip microcontroller
  • 256 bytes internal RAM
  • 8k bytes internal OTP ROM
  • 14 segment Star-burst Alphanumeric LCD with one line of 14 characters
  • Rubber mat keyboard with 16 keys
  • Operates from 2 CR2032 Li replaceable non-rechargeable coin cells providing a nominal operational life in excess of 3 years
  • Tamper evident case design

Card Interface

  • Full ISO7816-1/2 compatible
  • ID1 sized card
  • ISO7816 - T=0
  • 10,000 insertion cycles.

General Information

  • Weight: 40g
  • Dimensions: 90 x 68 x 12 mm
  • Operating Environment: 0 to +50C ambient, 10 to 90% relative humidity (non-condensing)
  • Transit and Storage: -10 to +60C ambient, 5 to 95% relative humidity (non-condensing)
