Value Load Terminal

The VLT is a self contained unit which allows the conversion from cash to electronic purse. Painted, 2mm mild steel construction with double locks and 2 line backlit LCD display. A solenoid eject soft landing card acceptor with optional shutter and support for both contact (ISO7816) and contactless (ISO14443-A) cards. The unit has been fitted with a Real Time Clock (RTC) unit with independent battery.

For connectivity to a host systems for online processing, please contact GIS.

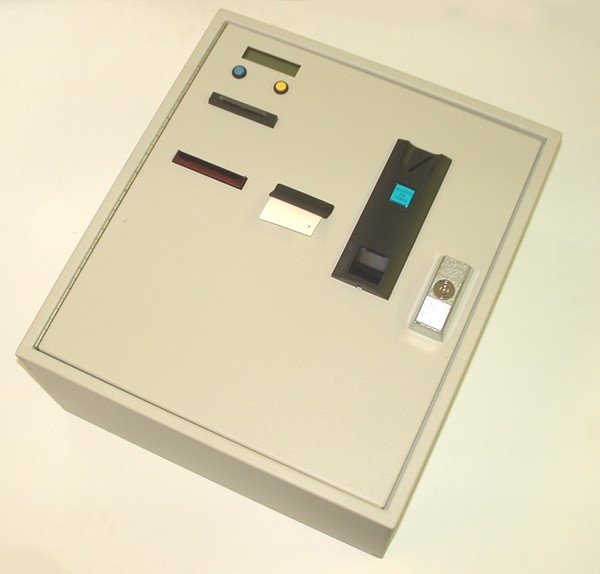

(click for larger image)

Hardware Specification

8-bit microcontroller with
64k bytes Flash Memory
1k bytes RAM.
2k bytes EEprom with additional 128k bytes (optional).
2 line x 16 LCD display with backlighting
On-board Real Time Clock
Software Flash upgradeable
Solenoid eject card acceptor with optional shutter
Buzzer
Thermal receipt printer (optional)

Card Interface

ID1 size cards
ISO7816 - T=0 / T=1
ISO14443-A Mifare (optional)
100,000 insertion cycles soft landing contacts
2 Internal ID-0 smart card acceptors

General Specifications

Removable secure cash boxes
Accepts up to 12 different coins (10 coins/sec)
Accepts up to 16 different banknote faces with anti-stringing
Reprogrammable software
Euro ready
Durable Painted 2mm mild steel metal enclosure
Powered by universal supply (80-264Vac)
Dimensions: 300 x 480 x 190 mm
Weight: 16 kg
Operating Environment: 0 to +50C ambient, up to 95% relative humidity (non-condensing)
Transit and Storage: -10 to +60C ambient, up to 95% relative humidity (non-condensing)
