Transactor

The Transactor (TX3) is a hand-held electronic wallet that can perform card to card transactions. Various models exist including Mondex, Unipoints and LETS versions. GIS welcomes requests for customisation of the Transactor for proprietary smart card purse schemes.

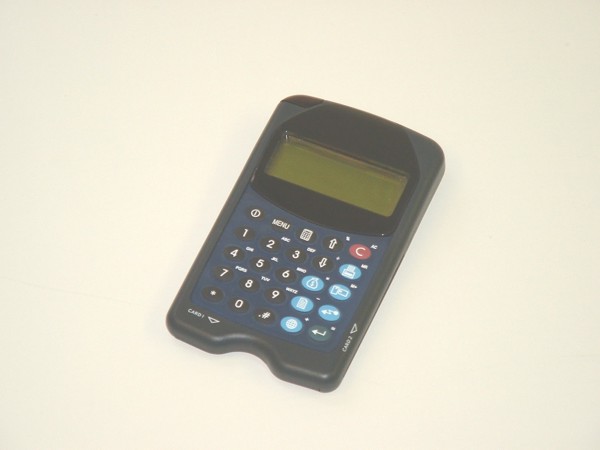

(click for larger image)

Specification

• 8-bit single chip microcontroller
• 64k bytes flash memory for applications
• 1280 bytes RAM
• Dual card support
• 100 x 32 pixel full graphics LCD display
• 25 key keyboard
• Securely flash upgradable
• Real-time clock with separate Li battery
• Runs on one "AAA" battery
• Infra Red (IrDA) port for printers and mobile telephones
• Additional EEprom for storage of transactions (up to 128KB)
• Optional backlighting (EL)

Card Interface



• Full ISO7816-1/2 compatible
• ID1 size cards
• ISO7816 - T=0 / T=1
• 50,000 insertion cycles

General Specifications

• Power: Single AAA battery providing 1000+ transactions.
• Dimensions: 110 x 64 x 16 mm
• Weight: 150g
• Operating Environment: 0 to +50C ambient, up to 95% relative humidity (non-condensing)
• Transit and Storage: -10 to +60C ambient, up to 95% relative humidity (non-condensing)
