SM2000-1/2

The GIS SM2000 L1 is an OTP Secure Smart Card reader/writer with integral keypad and display for applications where a secure payment over an insecure network is required. The GIS SM2000 L2 is a flash based secure Smart Card reader/writer with integral keypad and display for applications where a secure payment over an insecure network is required. Both the SM2000-1 and SM2000-2 can be disconnected from the host computer and be used as portable battery powered smart card readers.

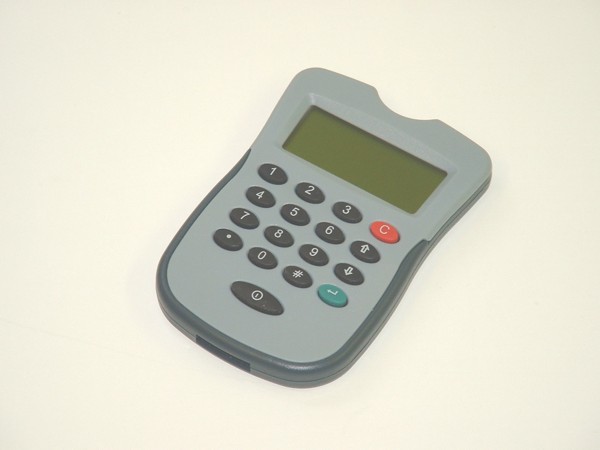

(click for larger image)

Standalone mode

• Two-line LCD with 16 characters per line (SM2000-1)
• Four-line LCD with 100 x 32 pixels graphics (SM2000-1)
• Keypad with 17 keys
• Supports CPU-based cards with T=0 or T=1
• ISO 7816 - 1/2/3 compatible smart card interface
• Windows® User libraries (DLL) drivers available
• RS232 interface to PC
• PS/2 Keyboard power connector

Specification



• LCD with 2 lines of 16 characters DOT matrix. An Icon on the display will indicate secure mode
• 8 bit microcontroller with integrated LCD controller
• 32k bytes of OTP memory
• 64k bytes of Flash memory
• 17 key rubber mat keyboard
• Serial non-volatile EEprom memory for storage of keys and application scripts
• Host Interface 9 way D-type RS232-C
• Card Interface ISO7816 interface. Support for T=0/T=1. Guaranteed for 10,000 insertions
• Dimensions 104mm (L) x 75mm (W) x 18mm (D)
• Weight 180g
