SM1 USB

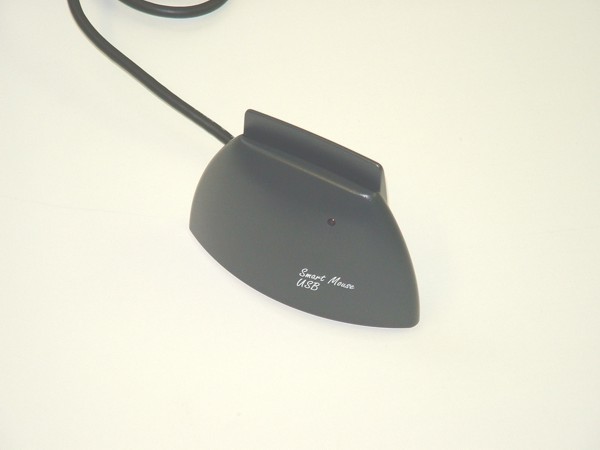

The Smart Mouse 1 USB is a low-cost, ISO-7816 compatible smart card reader / writer that connects to a Universal Serial Bus (USB) on a PC.

(click for larger image)

Host Interface

• PC, USB V1.1 compatible, full speed interface
• USB port powered
• Full plug and play
• Microsoft ® PC/SC drivers (Windows ® 98/Me, 2000 and XP)

Card Interface

• Six-contact wipe card acceptor
• 3.57MHz card clock
• ISO7816-3 asynchronous cards with PPS support
• Full ISO-7816-1/2 compatible
• 5V/3V Card support (Class A & A/B)
• LED indicator to identify when the card is inserted
• ISO-7816 - T=0 / T=1
• 100,000 insertion cycles

General Specifications

• Six-contact wipe card acceptor
• External Dimensions: 70mm x 104mm x 18mm
• Colour: cream or dark blue
• Unit Weight: 150g
• Power: +5V derived from the USB port
• Operating Environment: 0 to +50C ambient, up to 95% relative humidity (non-condensing)
• Transit and Storage: -10 to +60C ambient, up to 95% relative humidity (non-condensing)
