Handy H540 Portable Contactless Reader

This card reader is intended for portable use with any ISO-14443 card or ISO-14443 compatible tag system.

The unit is housed in a lightweight ergonomically designed plastic case and runs off a rechargeable Li+ internal battery. The user interface is programmable and is based on a set of four keys and four user defined function keys The LCD display comes with a complete graphical user interface.

The unit can be supplied with optional USB interconnectivity and the styling is designed for end user customisation. GIS can supply either full customisation and build or a development platform for in-house development.

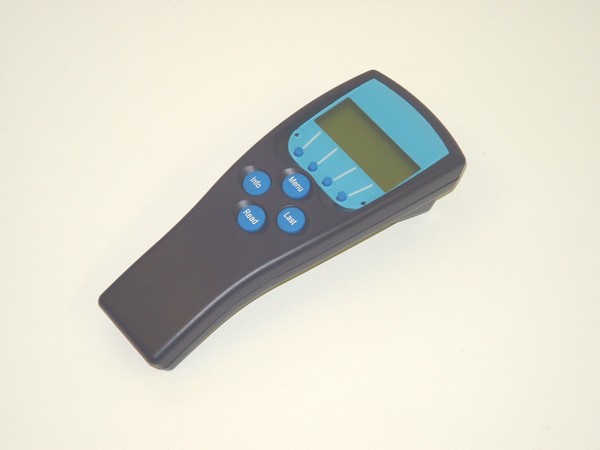

(click for larger image)

Hardware Specification

8-bit single chip microcontroller
1280 bytes internal RAM
2k bytes of internal EEprom
64k bytes internal Flash memory
Real Time Clock
100 x 32 DOT matrix graphic LCD (4 lines of 16 characters)
Rubber mat keyboard with 4+4 keys
Operates from single Li+ rechargeable cell
Ergonomic and lightweight case design
Red and green LED for simple user interface

Card Interface

ISO14443-A or ISO14443-B (optional)
Mifare Classic and Mifare Ultralight
Secure storage of card access keys in microcontroller
Read range 8cm (typ)

General Information

Weight: 150g
Dimensions: 170 x 68 x 40(max) mm
Operating Environment: 0 to +50C ambient, 10 to 90% relative humidity (non-condensing)
Transit and Storage: -10 to +60C ambient, 5 to 95% relative humidity (non-condensing)
