Handy H250 Portable Contactless Reader

This card reader is intended for portable use with any ISO-14443 card or ISO-14443 compatible tag system.

The unit is housed in a lightweight ergonomically designed plastic case and runs off a rechargeable Li+ internal battery. The User interface is programmable and is based on a set of 12 keys and an LCD display with a graphical user interface. The unit is be supplied with optional RS232 interconnectivity and the styling is designed for end user customisation. GIS can supply either full customisation and build or a development platform for in-house development.

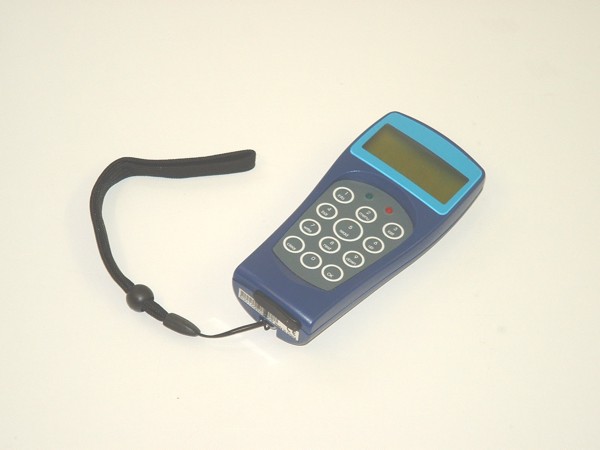

Handy Reader

(click for larger image)

Hardware Specification

  • 8-bit single chip microcontroller
  • 1280 bytes internal RAM
  • 2k bytes of internal EEprom
  • Real Time Clock
  • 64k bytes internal Flash memory
  • 100 x 32 DOT matrix graphic LCD (4 lines of 16 characters)
  • Membrane keyboard with 12 keys
  • Operates from single Li+ rechargeable cell
  • Ergonomic and lightweight case design
  • Red and green LED for simple user interface
  • Wrist lanyard
  • IP64 rated

Card Interface

  • ISO14443-A or ISO14443-B (optional)
  • Mifare Classic and ultralight
  • Secure storage of card access keys
  • Read range 8cm (typ)

General Information

  • Weight: 120g
  • Dimensions: 130 x 63 x 32(max) mm
  • Operating Environment: 0 to +50C ambient, 10 to 90% relative humidity (non-condensing)
  • Transit and Storage: -10 to +60C ambient, 5 to 95% relative humidity (non-condensing)
