CR1 Contactless card reader

General Purpose ISO 14443/Mifare card reader for PC connection using either RS232 or USB. The unit is housed in a ergonomically designed plastic case and runs off either the USB port or RS232 connection (using an external mains adapter). Please specify which interface is required when ordering. The software interface is by Windows DLL and is compatible with Windows Me, 2000 and XP.

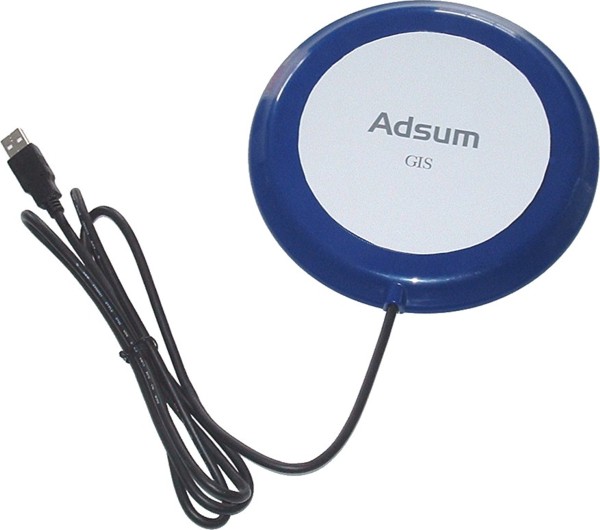

(click for larger image)

Hardware Specification

• 8-bit single chip microcontroller
• 1280 bytes internal RAM
• 32k bytes internal Flash memory
• Ergonomic case design
• Full Speed USB V1.1 Interface
• RS232 interface

Card Interface

• ISO14443-A or ISO14443-B (optional / *under development)
• Mifare Classic and Mifare Ultralight protocol

General Information

• Weight: TBC
• Colour: cool grey
• Dimensions: 170 x 170 x 13 mm
• Operating Environment: 0 to +50C ambient, 10 to 90% relative humidity (non-condensing)
• Transit and Storage: -10 to +60C ambient, 5 to 95% relative humidity (non-condensing)
