Contactless Balance Reader

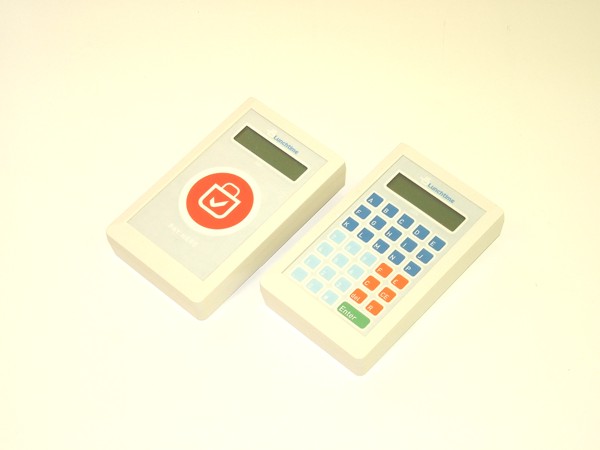

The contactless Balance Reader is a low cost, easy to use wall mounted balance reader which allows cardholders to quickly check their e-purse contactless card balance. The terminal comprises one of the C-POS boxes and has a 2 line backlit display to present information regarding the current balance or depending on the card and application additional information.

(click for larger image)

Hardware Specification Balance Reader

• 8-bit single chip microcontroller
• 1280byte internal RAM
• 64Kbytes internal Flash memory (program)
• Backlit 2 line display with 16 characters per line
• ISO14443-A contactless card interface (ISO14443-B *under development)
• 8cm (typ.) Reader range
• RS232 interface to controller, powered by controller box

Card Interface

• ISO14443-A or ISO14443-B (optional / *under development)
• Mifare Classic / Ultralight

General Information

• Weight: TBC
• Colour: cream
• Input Voltage: 9-40Vdc
• Dimensions: 170 x 170 x 13 mm
• Operating Environment: 0 to +50C ambient, 10 to 90% relative humidity (non-condensing)
• Transit and Storage: -10 to +60C ambient, 5 to 95% relative humidity (non-condensing)
